 | | Click to enlarge:
|
| |
| SKU: M98KIT

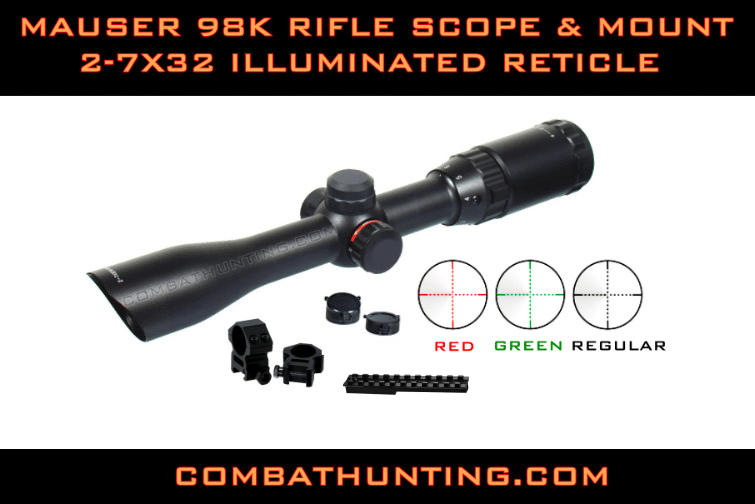

Mauser Karabiner Kar 98k Rifle Scope With K98 Scope Mount, Rings Lens Caps Red & Green ILLUMINATED RETICLE Scope can be turned off to return to black reticle to accommodate diverse weather & light conditions. Innovatively designed reticle providing reference points for quick range estimation during shooting. Mount Fits on front Iron sight leaf forward of the bolt so you do not have to change the bolt handle. This Mauser Sniper Rifle Scope kit is a great deal turn your old Mauser rifle into a long range sniper hunting rifle great for hunting. You get a complete kit K98 Mauser rifle scope with Illuminated reticle with power settings & Scope mount, Scope rings, lens polishing cloth and lens caps. The Reticle is laser lit for day or dusk shooting with 7 variable power settings. FITS German K98 Mauser, VZ. 24 rifle Yugo 48/48A Turned Bolt Yugo 24/47 Straight Bolt Turkish 1903/1937/1938/1946 & Swiss Models.
This scope mount is very easy to install First you punch out rear sight leaf pin and then remove rear sight leaf & spring then Put scope mount between sight ears and tighten the side screws evenly turn for turn each side. Then Loosen one top screw and tighten the other to adjust the mount elevation until it levels with your rifle barrel that's it your done.
• Scope Specification
• Magnification: 2X - 7X
• Tube Diameter: 1 Inch
• Objective Diameter: 32mm
• Field of View @ 100 yards: 48.5' - 13.9'
• Eye Relief: 5.1" - 4.3"
• Exit Pupil: 10.0mm - 4.6mm
• Click Value @100 yards: 1/4"
• Emerald Lens Coatings
• Heavy Duty Recoil Resistance
• Quick Electronic Mil-dot
• Range Estimating Reticle System
• RGB Side Wheel Illumination Twilight Vision
• Integral Sunshade
• Complete With Flip-open Lens Caps
• Parallax Setting: 100 Yds
• Nitrogen Filled Fogproof
• Batteries included: CR1620 3V
• Scope Limited lifetime warranty
| Regular Price: | $ 179.95 / Each |  | | Sale Price: | $ 149.00 / Each | | You Save: | $ 30.95 / Each |
|
|
|
Specifications:
|
|
|
| . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
| |
|
|
| |
|
|
