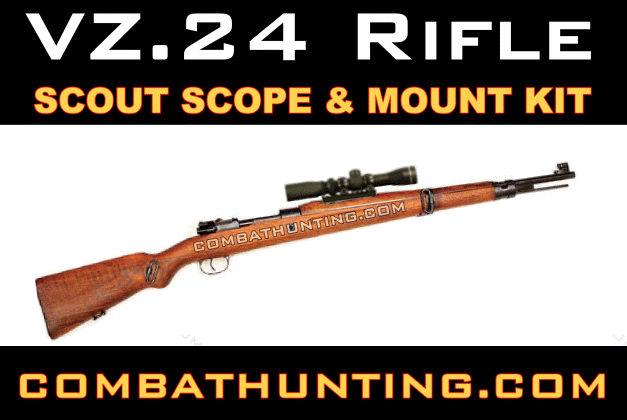

This Mauser 98 VZ.24 Sniper Rifle Scope kit and no drill mount is a great deal turn your old Mauser rifle into a long range sniper hunting rifle great for hunting. You get a complete kit K98/VZ.24 rifle scope with Illuminated reticle with 7 power settings & scope mount, scope rings, lens polishing cloth and lens caps. The Reticle is LED lit for day or dusk shooting with 7 variable power settings. Kit fits German K98 Mauser, VZ. 24 rifle Yugo 48/48A Turned Bolt, Yugo 24/47 Straight Bolt, Turkish 1903/1937/1938/1946 & Swiss Models.
This scope mount is very easy to install First you punch out rear sight leaf pin and then remove rear sight leaf & spring then Put scope mount between sight ears and tighten the side screws evenly turn for turn each side. Then Loosen one top screw and tighten the other to adjust the mount elevation until it levels with your rifle barrel that's it your done.

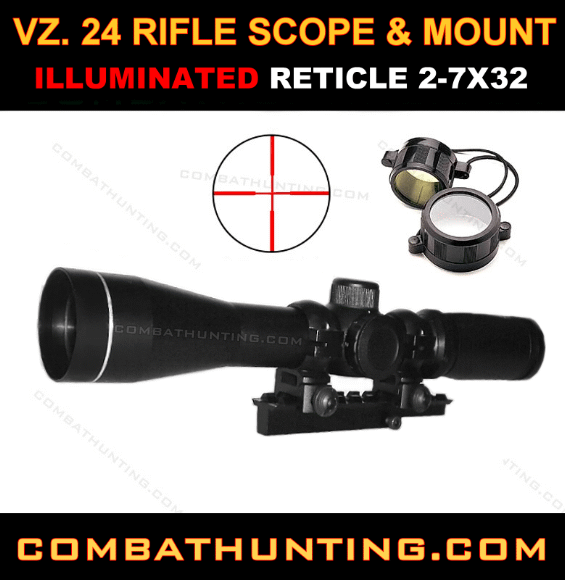

Vz.24 Mauser Scout Sniper Rifle Scope Specs:
Magnification: Zoom 2X-7
Illuminated Reticle
Objective Dia. Mm: 32Mm
Finish: Black
Tube Dia: 1"
Field Of View @ 100 Yrs (Feet) : 15.50 - 4.5
Lens Coating: Blue
Length Inches: 11.00"
Wt. Ounce: 9.00 Oz.
Long Eye Relief Inches: 8.7 - 10.67
Reticle: Illuminated Plex Crosshair 7 Power Settings
Scope Ring Mount: Yes
Vz.24 Mauser Scope Mount Included :Yes
Lens Caps : Yes
Polishing Lens Cloth : Yes
Comes With A Lifetime Limited Warranty
