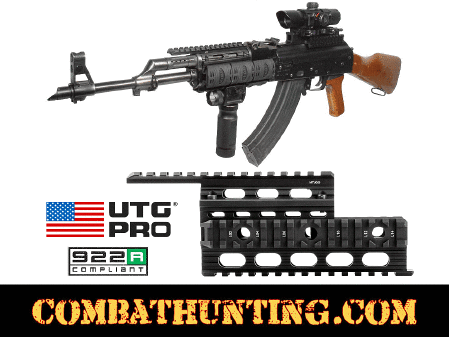

UTG Pro AK-47 Universal Quad Rail Handguard MTU009

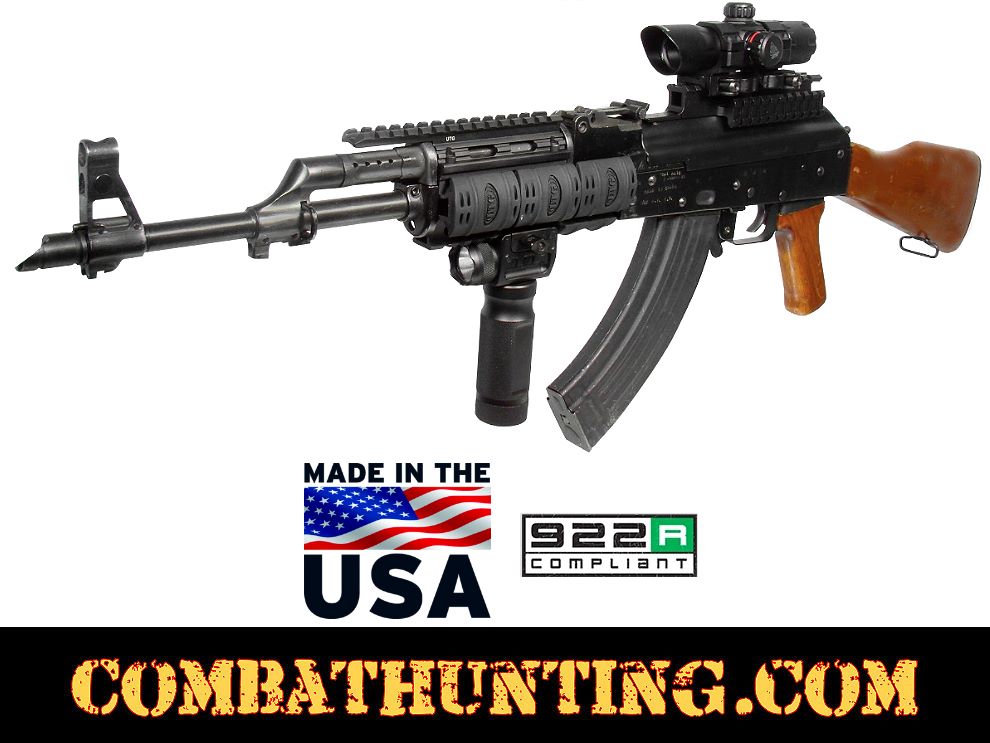

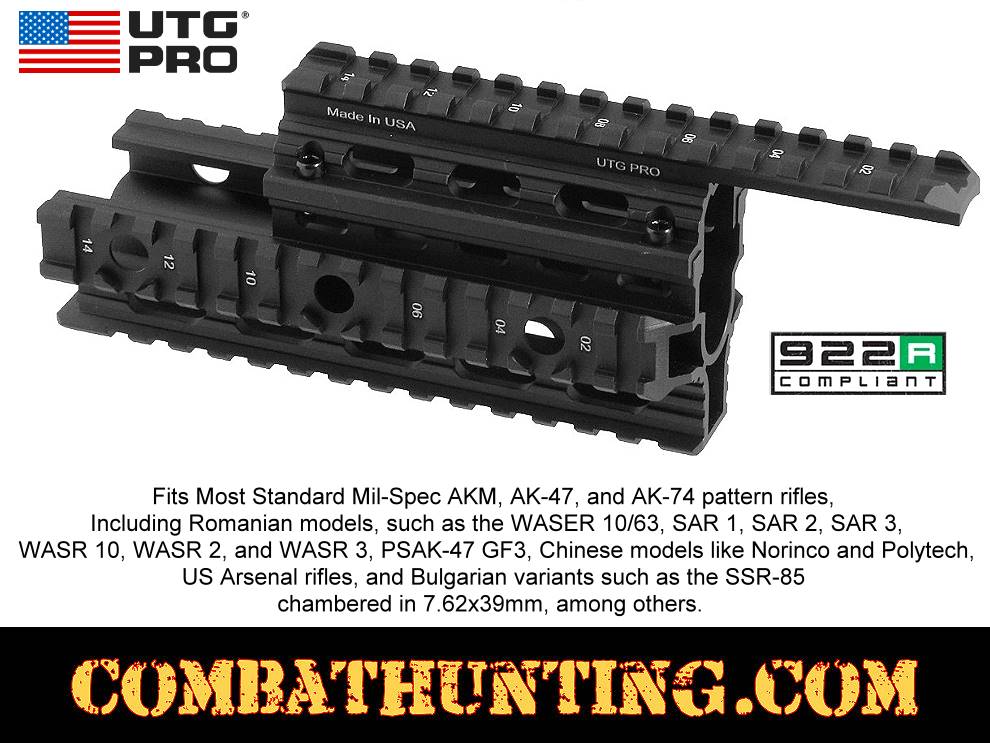

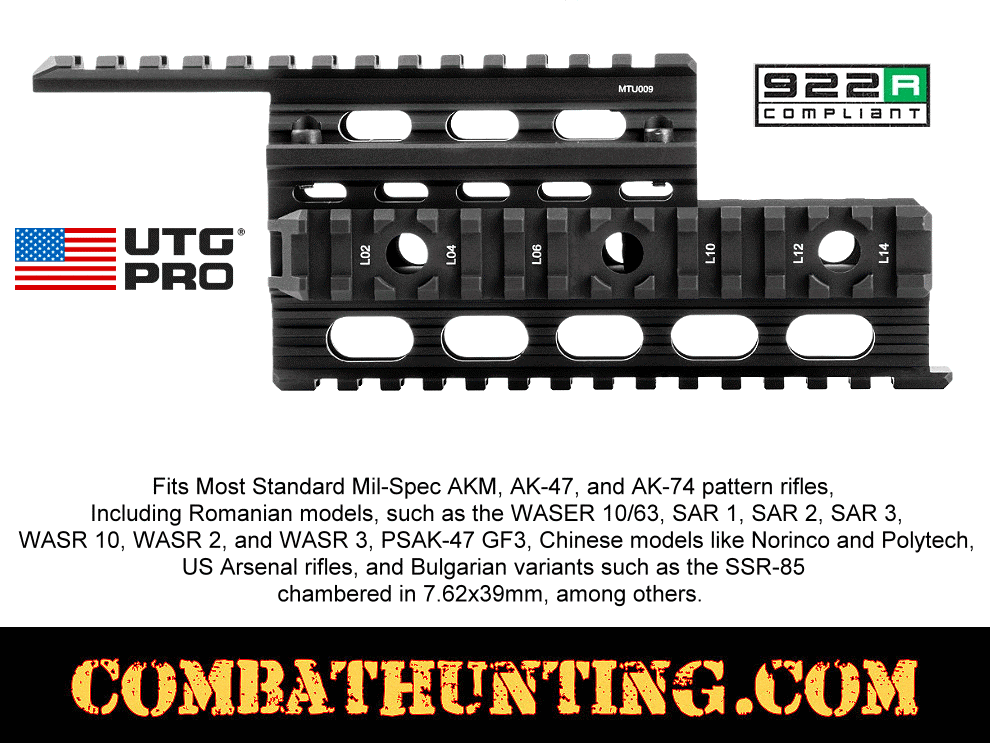

This Universal AK-47 UTG Pro AKM Drop-in Handguard Quad Rail for sale at Combathunting.com fits Romanian, Bulgarian, Chinese, and US AK rifles and their variants, including models with oversized barrels and rear sight blocks. This "drop-in" replacement handguard for AK-47 and AK-74 rifles features four MIL-SPEC Picatinny rails, ideal for mounting a red dot optic, vertical grip, laser sight, and tactical flashlight. The AKM forend includes integrated QD swivel housings on the left and right rails for sling attachment. The rail system is constructed from rugged aircraft-grade aluminum alloy, precision CNC machined, and finished with a hard-coat anodized surface for enhanced wear resistance. Black rubber rail guards are included, and Allen wrenches are provided to tighten all hand screws. It fits most standard mil-spec AKM, AK-47, and AK-74 pattern rifles, including Romanian models, such as the WASER 10/63, SAR 1, SAR 2, SAR 3, WASR 10, WASR 2, and WASR 3, PSAK-47 GF3, Chinese models like Norinco and Polytech, US Arsenal rifles, and Bulgarian variants such as the SSR-85 chambered in 7.62x39mm, among others. Proudly made in the USA, it exemplifies exceptional design and craftsmanship. This product is backed by a UTG lifetime warranty.
Note: Some minor fitting may be required due to the many variants of AK rifles made by different manufacturers. Any modifications are at your own risk. Use the Allen wrenches included with this product to tighten all screws. Do not use power tools, ratchets or any other tool which may cause damage due to excessive torque and void your warranty.
Color(s) Black
Material Surface Finish Hard Anodized
Materials Machined from 6061-T6 aluminum
Modular System Four Mil-spec Picatinny Rails
QD Swivel Housings on Left/Right Rails
Picatinny Slots 56 total (14 each, with top offset forward)
Length: Approximately 8.34 inches.
Torque Specification 20 in-lbs For (M3 Hex Bolts)
Weight 10.1 oz (286.3 g)
Proudly Made in USA
922R Compliant
If you need a Yugo M70 AK Quad Rail Handguard compatible with most Zastava Serbia N-PAP and O-PAP series models, use # MTU011.
