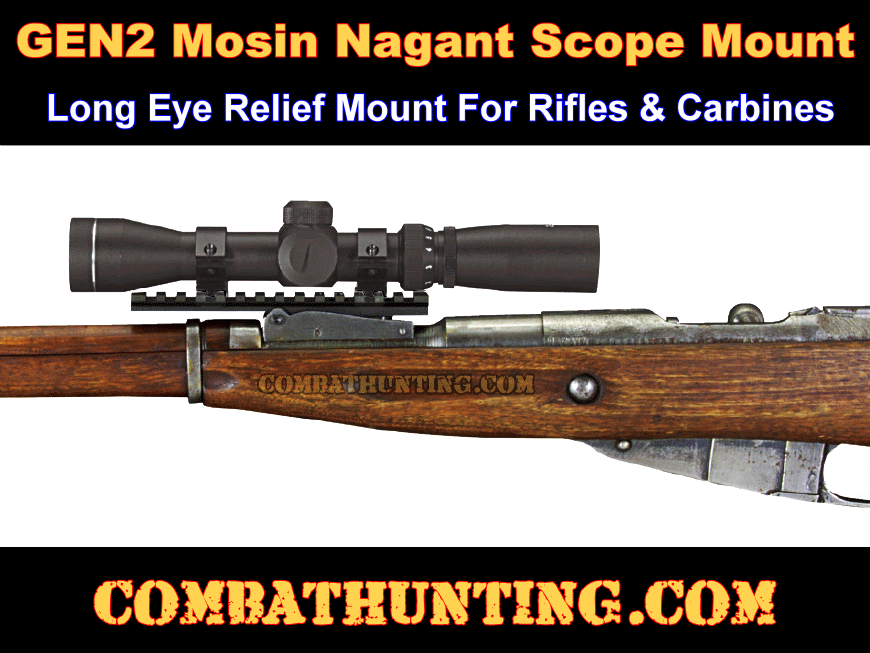

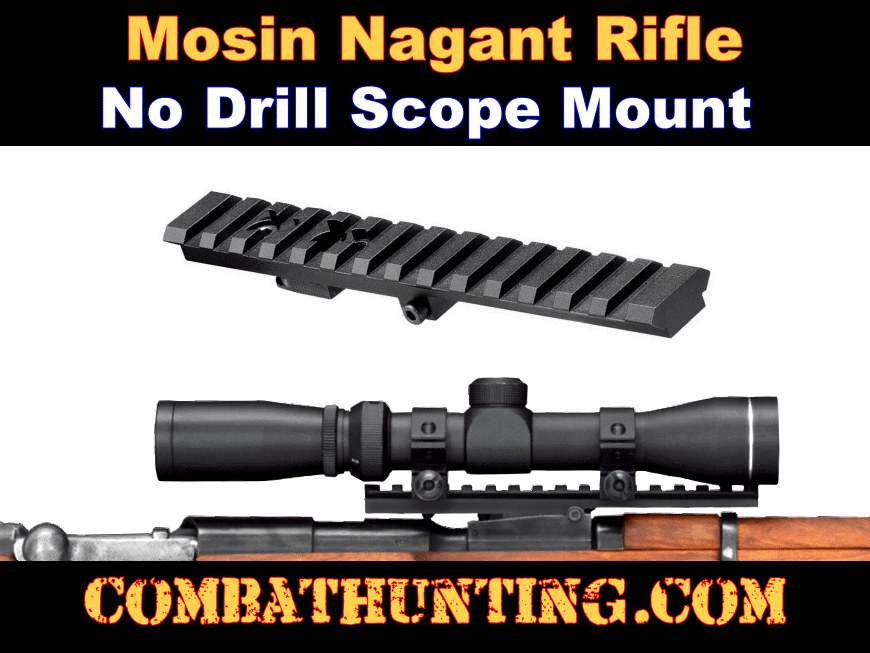

Mosin Nagant Scope Mount No Drill For 91/30, M44, M38, T53

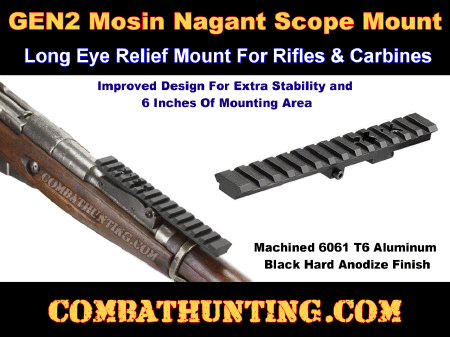

The Mosin Nagant No-Drill Scope Mount is compatible with the 91/30, M44, M38, M39, and Chinese Type 53 rifles. This no-drill scope mount features an easy installation process, a low-profile design, and a rock-solid construction that adheres to the Weaver-Picatinny MIL-STD-1913 rail specifications. The scout Mosin Nagant no-drill scope mount is designed to fit the M9130 rifle, including both round and hex receivers, as well as the Mosin Nagant M44 carbine, M38, T53, and most other Mosin rifles. This scope mount boasts an improved design for enhanced stability without permanently modifying the rifle. Installation is straightforward with the supplied tools. The scope mount provides six inches of mounting area, allowing for a wide range of scope positioning options. Its unique design features a stable, low-profile base with a larger mounting surface than most comparable products. Constructed from CNC-machined 6061 T6 aluminum and finished with a black hard anodized coating, this mount is intended for use with long eye relief scout scopes. Steel mounting hardware is included, and the product comes with a limited lifetime warranty.
The no drill scope mount replaces the rear sight leaf on the Mosin Nagant rifle and it is very easy to install. First you punch out rear sight leaf pin and then remove rear sight leaf and spring then put scope mount between sight ears and tighten the side screws evenly turn for turn each side. Then Loosen one top screw and tighten the other to adjust the mount elevation until it levels with your rifle barrel that's it your done. Note mount fits just about all models you may need to slightly modify mount on some model rifles.
We recommend long eye relief scopes to go with this mount # JHI2742G-M
We Recommend This Mount As a Replacement MNT-MNTR01
